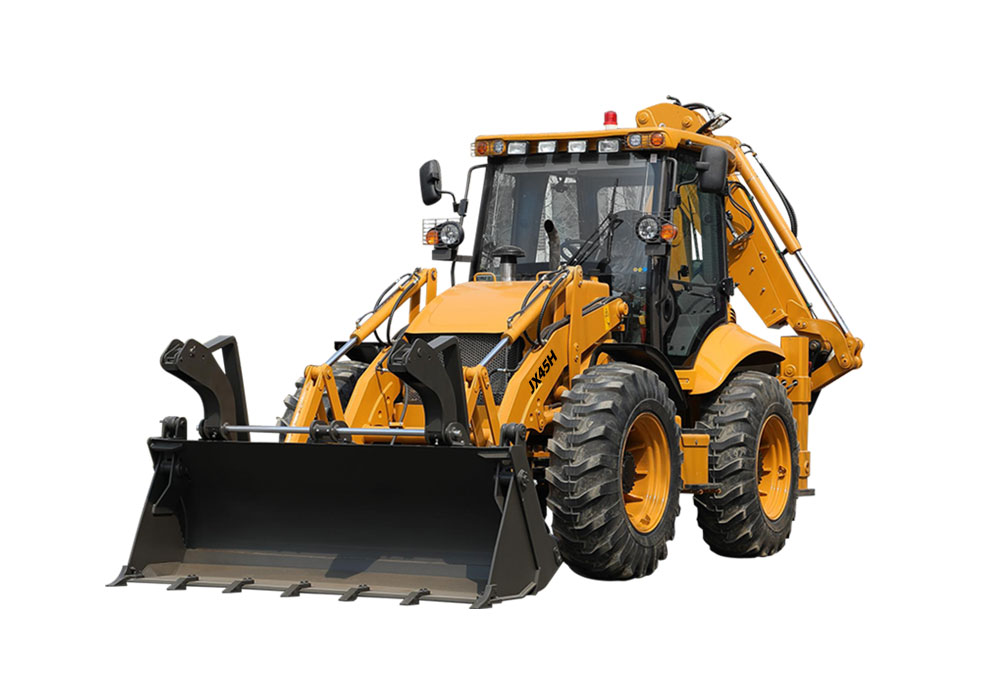

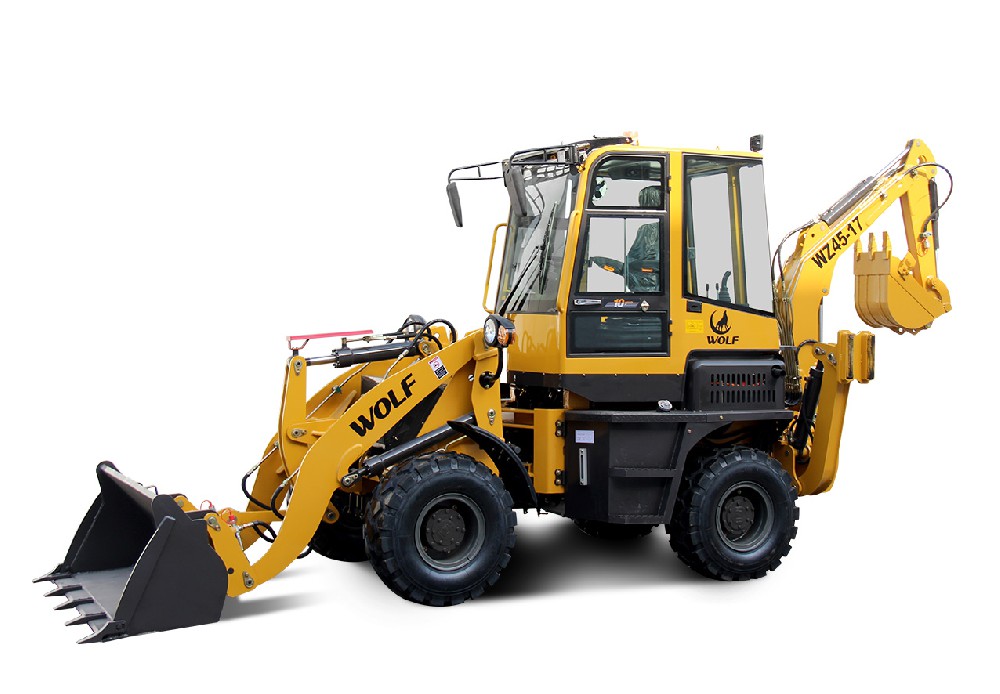

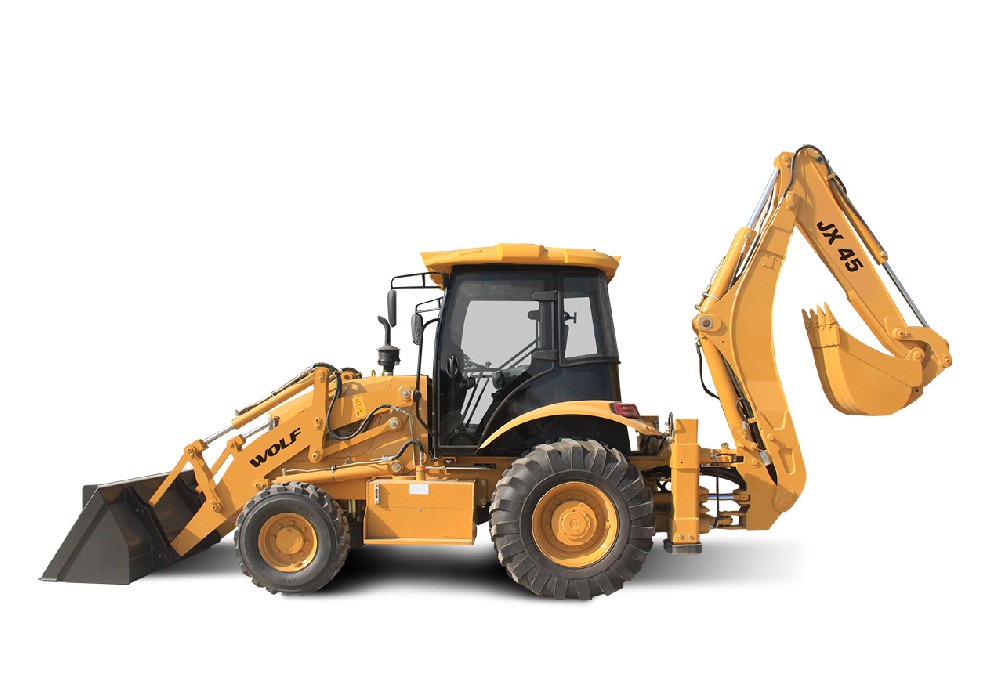

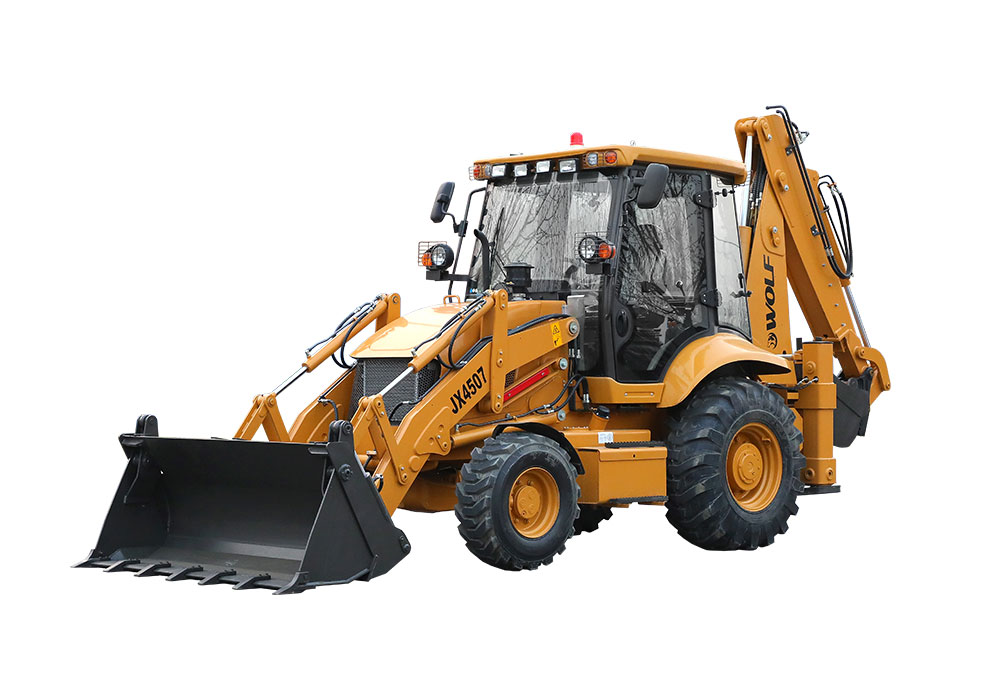

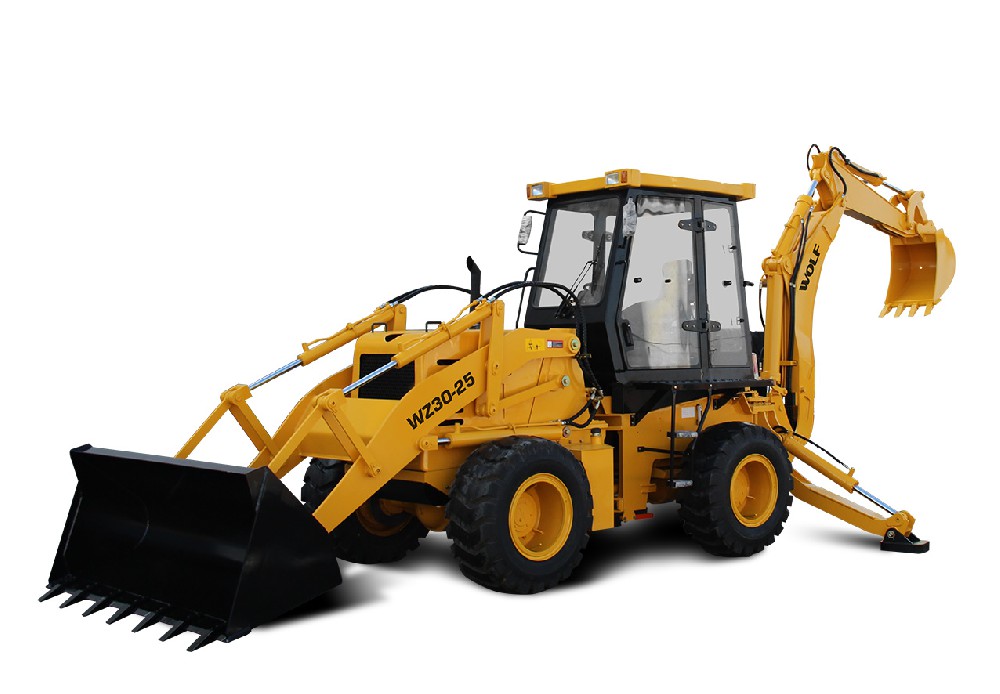

Wheeled Backhoe 4x4 Tractor Loader Construction Excavator
Versatile wheeled backhoe 4x4 tractor loader combining front-end loading and rear excavating capabilities. Diesel engine with 2-in-1 functionality for construction and utility work. CE and ISO certified.
- Machine Type: Backhoe Loader (2-in-1)
- Engine: 44-55 kW (60-75 HP) Diesel
- Loader Bucket: 0.8 m3
- Excavator Bucket: 0.2 m3
- Max Digging Depth: 3500 mm
- Drive Type: 4x4
Product Overview
The Jinlonglutai wheeled backhoe tractor loader is a versatile 2-in-1 construction machine combining a front-end wheel loader with a rear backhoe excavator. This eliminates the need for separate machines, reducing capital investment and transport costs.
Dual Functionality
The front loader handles material handling, truck loading, and site grading tasks. The rear backhoe excels at trenching, foundation digging, utility line installation, and drainage work. Quick pivot between front and rear functions maximizes job-site productivity.
4x4 Capability
The 4x4 drivetrain with 4-wheel steering option provides excellent maneuverability on construction sites. The machine can operate effectively on paved surfaces, dirt roads, and moderate off-road terrain.
Professional Grade
CE and ISO certified. Manufactured by Jinlonglutai in Qingdao, China. Built with industrial-grade hydraulic components and reinforced structural members for reliable long-term operation.
Technical Specifications
| Engine Model | Yunnei 4100/4102 Diesel |
| Rated Power | 44-55 kW (60-75 HP) |
| Loader Bucket Capacity | 0.8 m3 |
| Excavator Bucket Capacity | 0.2 m3 |
| Max Digging Depth | 3500 mm |
| Max Digging Reach | 4500 mm |
| Max Loading Height | 2800 mm |
| Drive Type | 4x4 |
| Max Speed | 28 km/h |
| Operating Weight | 4500 kg |
| Overall Dimensions | 5800 x 2200 x 3200 mm |
| Gradeability | 25 deg |
| Hydraulic Pressure | 16 MPa |
