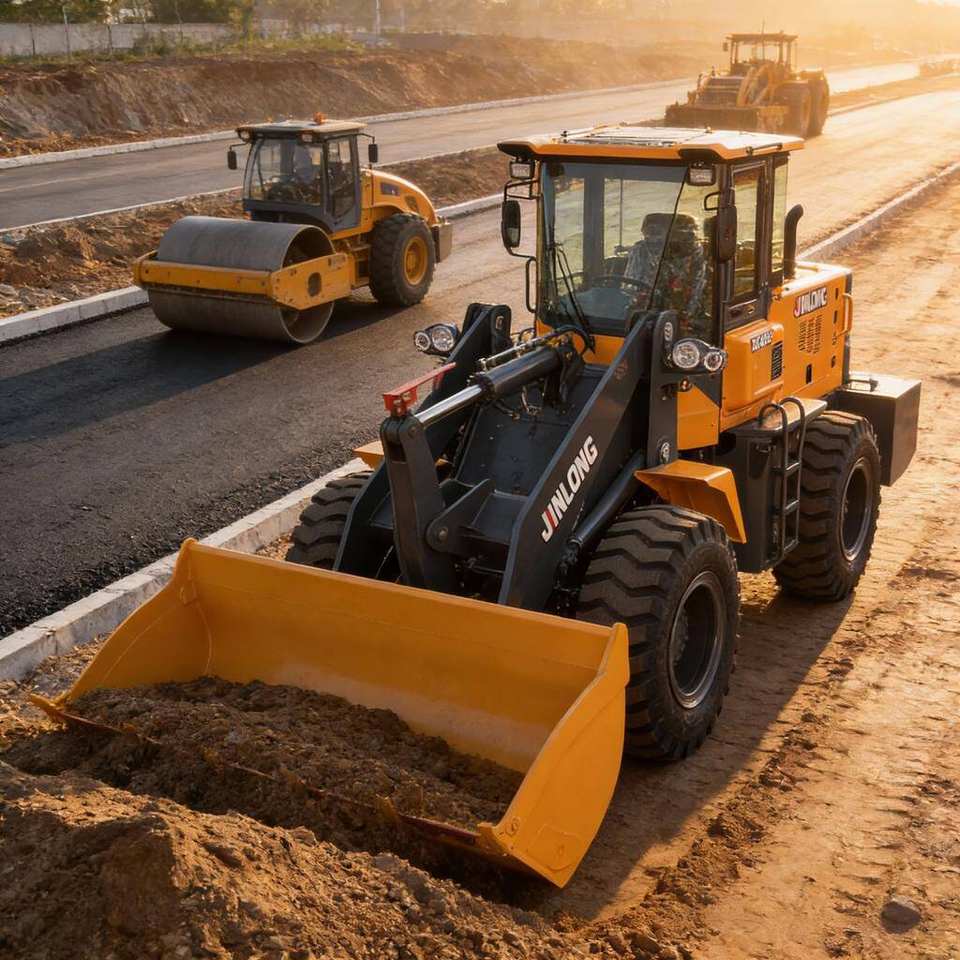

Articulated Wheeled Tractor Loader 1.5m³ Bucket Diesel 4WD
Articulated wheeled tractor loader with 1.5m³ bucket capacity and 4WD diesel engine. Features articulated frame steering for superior maneuverability in confined spaces. CE & ISO certified. Ideal for farm, construction, quarry, and earthmoving operations.
- Power: 55-66 kW (75-90 HP) Diesel
- Bucket Capacity: 1.5 m³
- Operating Weight: 4200-4800 kg
- Steering: Articulated Frame
- Drive Type: 4WD
- Certification: CE, ISO
Application Scenarios
This articulated wheeled tractor loader features a generous 1.5m³ bucket capacity and articulated frame design for exceptional maneuverability in confined spaces and rough terrain. The tight turning radius and powerful 4WD system deliver outstanding traction on muddy farms, rocky quarries, uneven construction sites, and mining roads. Ideal for large-volume earthmoving, material loading, site preparation, and agricultural bulk handling where a standard wheel loader may struggle with space constraints.
Customization Options
We offer comprehensive OEM/ODM services including custom paint colors, branded decals, specialized bucket configurations (standard, 4-in-1, snow blade, grapple, rock bucket), and tire upgrades for extreme terrain. Optional attachments such as pallet forks, augers, sweepers, and backhoe arms are available. Engine brand options include Yunnei, Changchai, and Foton. Contact our sales team for tailored solutions to match your operational requirements.
Production & Delivery
With 88,000 square meters production facility, we guarantee timely delivery. Standard lead time is 10-25 working days depending on order quantity and customization requirements. Sample orders and trial batches are welcome.
Certificates & Quality Assurance
All products are CE and ISO 9001 certified. Complete documentation including certificates of origin, quality inspection reports, and customs clearance paperwork is provided with every shipment.
Technical Specifications
| Model | JL-WL-TL-150 |
| Machine Type | Articulated Wheeled Tractor Loader |
| Certification | CE, ISO 9001 |
| Power Source | Diesel Engine |
| Engine Model | Yunnei / Changchai (Optional) |
| Rated Power | 55-66 kW (75-90 HP) |
| Drive Type | 4WD |
| Transmission | Mechanical / Power Shift Optional |
| Steering Type | Articulated Frame Steering |
| Bucket Capacity | 1.5 m³ |
| Operating Weight | 4200-4800 kg |
| Overall Height | 2900 mm |
| Overall Length | 5800 mm |
| Overall Width | 2000 mm |
| Max Speed | 28 km/h |
| Max Dumping Height | 3400 mm |
| Max Digging Depth | 150 mm |
| Max Traction Force | 52 kN |
| Tire Type | Pneumatic Off-Road 17.5-25 / 16/70-20 |
| Turning Radius | 5000 mm |
| Hydraulic Pressure | 16-20 MPa |
| Control System | Joystick Hydraulic Pilot |
| Place of Origin | Shandong, China |
| Brand Name | JINLONGLUTAI |
| Feature | Articulated Steering, Large 1.5m³ Bucket, Compact Turning Radius |
| Application | Construction, Farm, Quarry, Mining, Earthmoving, Road Maintenance |
| Warranty | 1 Year |
