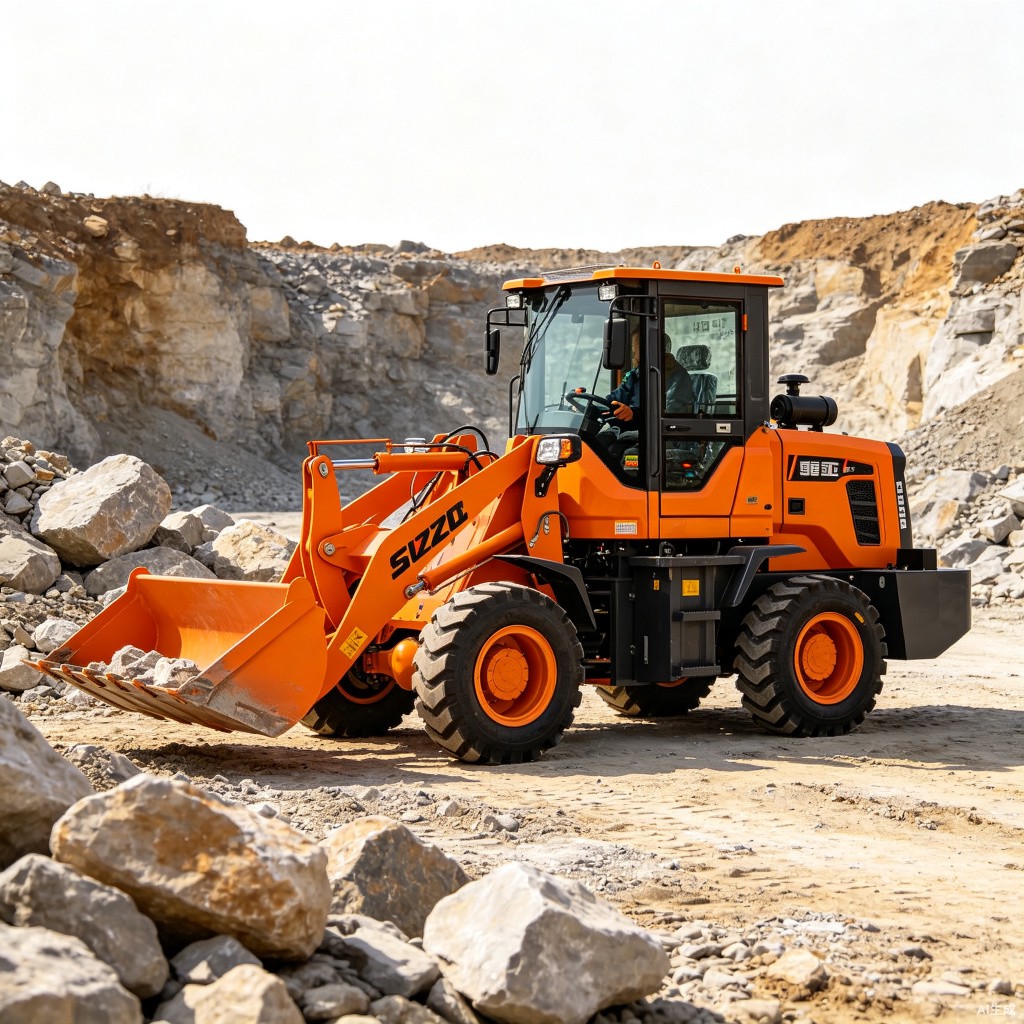

Custom Design Listrik Hidrolik Pilot Operated Pemuat Ujung Depan 2 Ton
Custom designed Pemuat Ujung Depan with Listrik-Hidrolik pilot joystick controls, 78KW engine, and 2-ton capacity. Premium pilot operated Hidrolik system for precise control. CE & ISO 9001 certified.
- Kapasitas Angkat Terukur: 2 Ton
- Control: Electric-Hydraulic Pilot Joystick
- Daya: 78KW Diesel Engine
- Custom Design Available
Application Scenarios
This custom design front end loader features advanced electric-hydraulic pilot joystick controls that provide precise, effortless operation for bucket lifting, tilting, and third-function hydraulics. The pilot control system reduces operator fatigue significantly compared to traditional lever controls, making it ideal for all-day construction and mining operations. The 78KW diesel engine delivers robust power for demanding material handling tasks.
Customization Options
Extensive customization available: pilot control configuration, bucket type (standard, 4-in-1, rock, grapple), quick coupler, third-function hydraulics, enclosed ROPS/FOPS cab with AC/heater, tire selection, LED lighting package, rear camera, and custom color schemes. OEM and ODM services supported for volume orders.
Production & Delivery
With 88,000 sqm production facility and advanced CNC machining center, custom orders are completed within 10-25 working days. Each custom loader undergoes full system testing including pilot hydraulic calibration, load testing, and 4-hour endurance run.
Certificates & Quality Assurance
CE and ISO 9001 certified. Complete technical documentation for international trade. One-year warranty with optional extended coverage. Dedicated overseas service team for installation, training, and ongoing technical support.
Technical Specifications
| Product Name | Electric Hydraulic Pilot Front End Loader |
| Model Number | JL-926P |
| Brand Name | JINLONG |
| Condition | New |
| Power Type | Diesel |
| Engine Brand | Yunnei / Weichai |
| Rated Power | 78 KW |
| Rated Load Capacity | 2000 kg |
| Bucket Capacity | 1.2 m3 |
| Dumping Height | 3100 mm |
| Dumping Reach | 1000 mm |
| Max. Digging Depth | 80 mm |
| Breakout Force | 42 kN |
| Traction Force | 48 kN |
| Drive Type | 4WD |
| Steering Mode | Articulated |
| Gearbox | Power Shift / Hydraulic |
| Hydraulic Control | Electric-Hydraulic Pilot Joystick |
| Max. Travel Speed | 28 km/h |
| Grade Ability | 30 deg |
| Operating Weight | 6000 kg |
| Overall Dimensions (LxWxH) | 6500 x 2300 x 3100 mm |
| Wheel Base | 2650 mm |
| Min. Ground Clearance | 370 mm |
| Tire Type | 20.5-25 / 23.5-25 Pneumatic Tire |
| Hydraulic System Pressure | 18 MPa |
| Pilot System Pressure | 4 MPa |
| Fuel Tank Capacity | 150 L |
| Certification | CE, ISO 9001 |
| Place of Origin | Qingdao, Shandong, China |
| Applicable Industries | Construction, Mining, Road Building, Material Handling |
